AEGIS slant bed CNC Lathe machines are high accuracy turning and milling complex CNC Lathe.
The series of machines is equipped with a 12 tools live turret in combination with the C-axis function, allowing turning, side and face milling, boring, drilling and tapping to be accomplished in one setup.
- The spindle is drive by a wide-range high torque motor making the machine suitable for various machining requirments.
- The bed is one-piece manufactured from high quality Meehanite cast iron, stress relieved to remain deformation-free year after year.
- Massive bed and base construction feature high rigidity and excellent vibration dampening.
- Oversized Box Ways- Box-ways contruction combined with a great span for dramatic increase in rigidity and stability. This thickness of boax way is 30% bigger than that of previous model with greater rigidity.
- Japanese Tsubaki Linear Guideway- Small friction, high accurate movement. Mainly used in the processing of high-precision requirements.
Mill-Turn
B: Box Way L: Linear Guide Way Y: Y-axis
Model | FTC-23BM | FTC-23BMY | FTC-23LM | FTC-23LMY |
Swing over bed | Ø600mm | Ø600mm | Ø600mm | Ø600mm |
Swing over saddle | Ø350mm | Ø360mm | Ø350mm | Ø360mm |
Distance between Center | 588/888/1188mm | 574/874/1174mm | 604/904/1204mm | 549/849/1149mm |

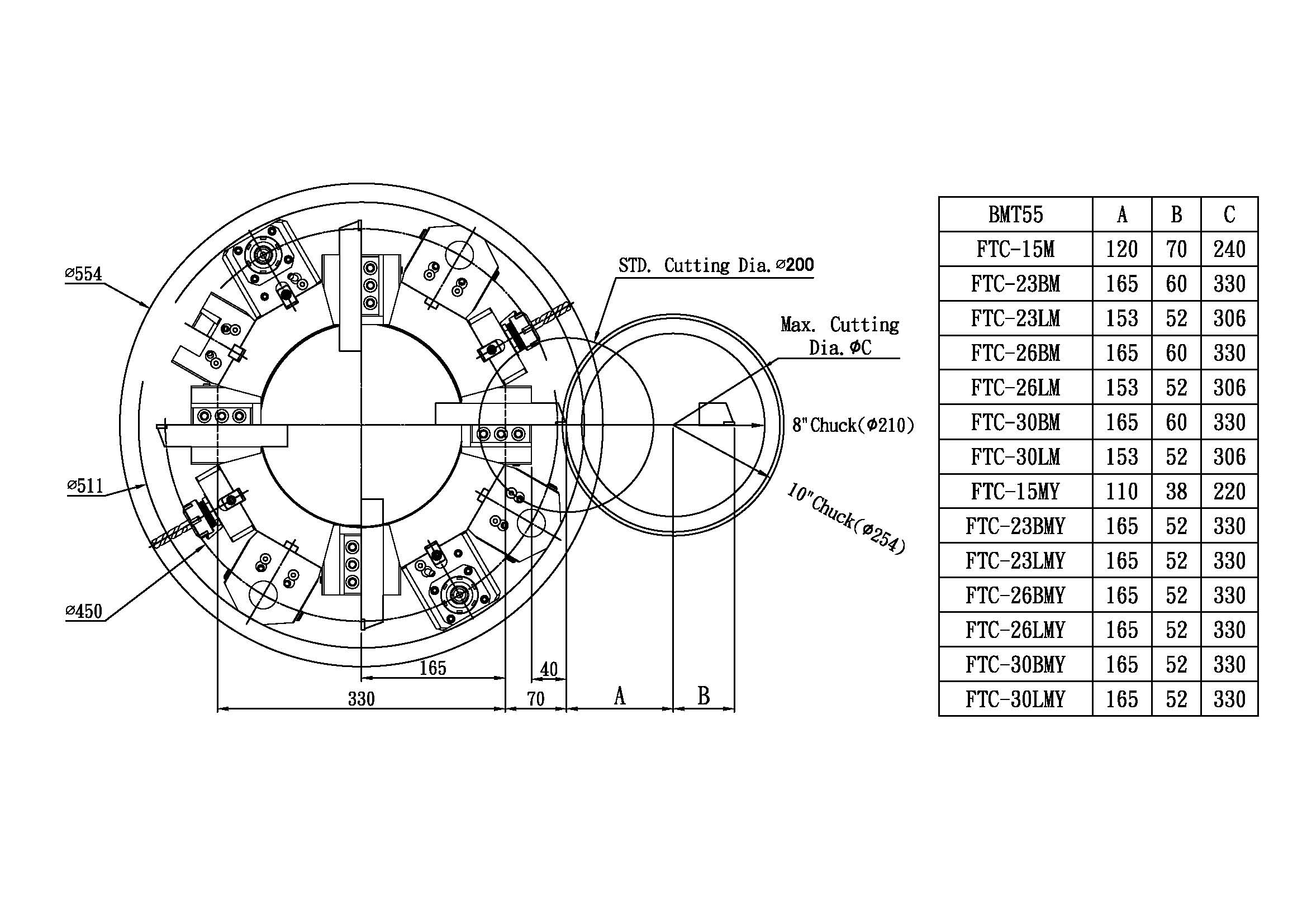

Standard Cutting Dia. | Ø230mm | |||
Max. Cutting Dia. | Ø290mm | |||
Max. Cutting Length | 520/820/1120mm | 509/809/1109mm | 500/800/1100mm | 483/783/1083mm |
Spindle Motor | 11/15kw | 11/15kw | 11/15kw | 11/15kw |
Spindle Speed. | 4200rpm | 4200rpm | 4200rpm | 4200rpm |
Spindle Nose | A2-6 | A2-6 | A2-6 | A2-6 |
Spindle Hole | Ø62mm(75OPT) | Ø62mm(75OPT) | Ø62mm(75OPT) | Ø62mm(75OPT) |
Through Bar Capacity | Ø52mm(65OPT) | Ø52mm(65OPT) | Ø52mm(65OPT) | Ø52mm(65OPT) |
Spindle Front Bearing I.D. | Ø100mm | Ø100mm | Ø100mm | Ø100mm |
Tailstock Taper | MT#4/MT#5(OPT) | MT#4/MT#5(OPT) | MT#4/MT#5(OPT) | MT#4/MT#5(OPT) |
Tailstock Quill Dia. | Ø80mm | Ø80mm | Ø80mm | Ø80mm |
Tailstock Quill Travel | 70mm | 70mm | 70mm | 70mm |
X-axis Travel | 205mm | |||
Z-axis Travel | 560/860/1160mm | 550/850/1150mm | 540/840/1140mm | 525/825/1125mm |
Y-axis Travel | ±50mm | ±50mm | ||
X-axis Rapid Speed | (B:)20m/min / (L:) 24m/min | |||
Z-axis Rapid Speed | (B:)20m/min / (L:) 24m/min | |||
Y-axis Rapid Speed | ||||
Min. Input Increment | 0.001mm | |||
Power Turret Motor | 3.7/5.5kw | |||
Power tooling speed | 4000 rpm | |||

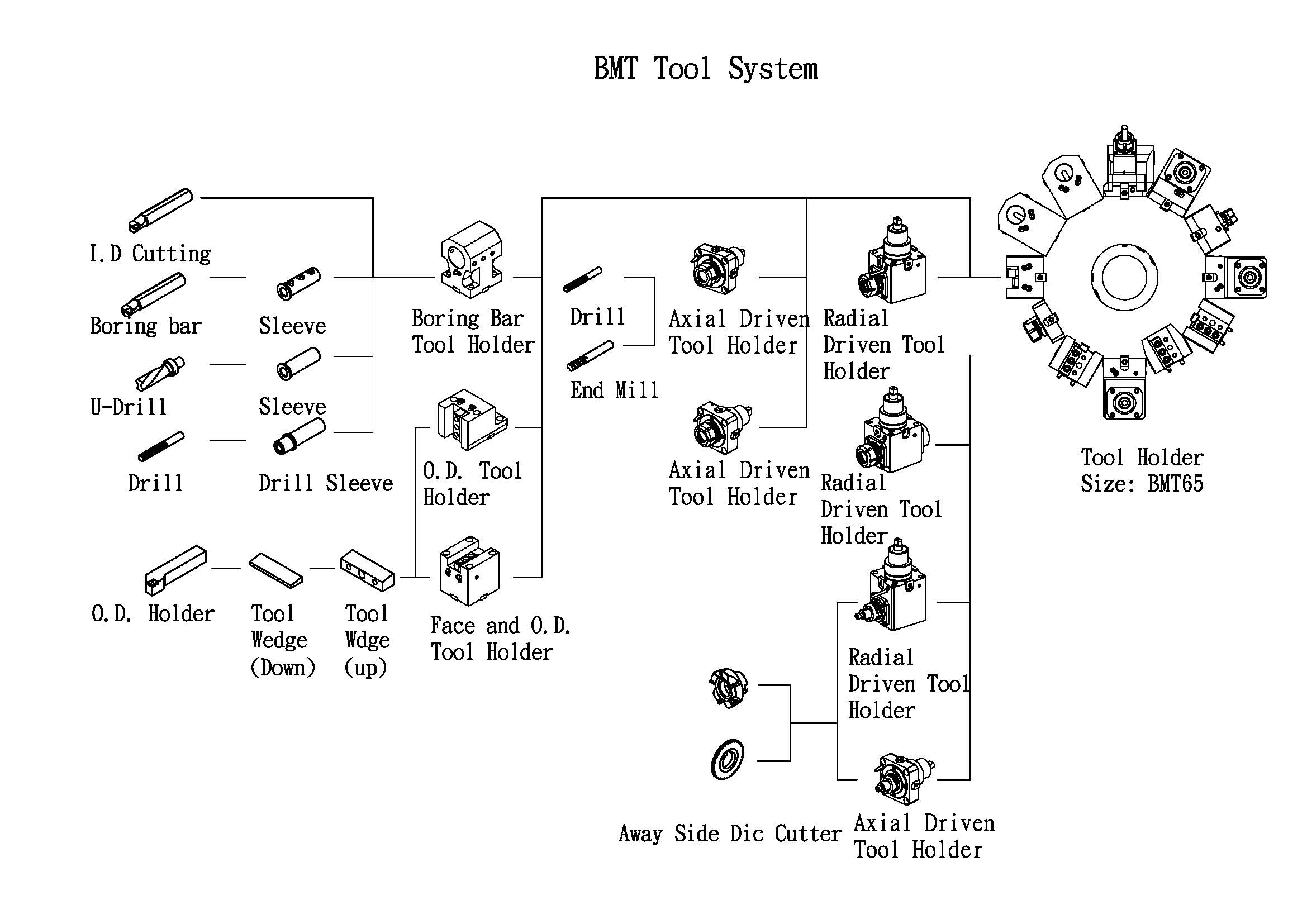

Power Turret Type | BMT65(VDI-40 or VDI-50OPT) | |||
Square Shank Tool Size | 25mm | |||
Max. Boring Tool Dia. | 40mm | |||
Number of Turret Tools | 12 tools | |||
Change Tool Time | 0.47sec | |||
Machine Size | 3884x1885x1860mm | 3884x1885x2150mm | 3884x1885x1860mm | 3884x1885x2150mm |
Machine Weight | 5100kg | 5300kg | 5100kg | 5300kg |
- Fanuc Bzi Sensor
- Spindle Air Blow Device
- Axial Power Tool Holder
- Radial Power Tool Holder
- Front Side Parts Catcher
- Auto Door
- Tool Length Measurement
- Programmable Tailstock
- Air conditioner for Electrical Cabinet
- Transformer
- 12 tools power turret
- Cs-axis spindle function
- Wide range spindle motor
- Coolant system
- Work lamp
- Auto lubrication system
- Tool box with tool kits
- Warning lamp
- Bar feeder interface
- Tailstock
- Heat exchanger for electrical cabinet
- Foot switch
- RS-232 interface
- Tool holders
- Chip conveyor with remove cart
- Full enclosed splash guard
- Leveling bots and pads
- Machine and electrical manuals
MODEL: FTC-23BM
MODEL:FTC-23LM
